Mirror weights on the meshes that break X-Mirror.

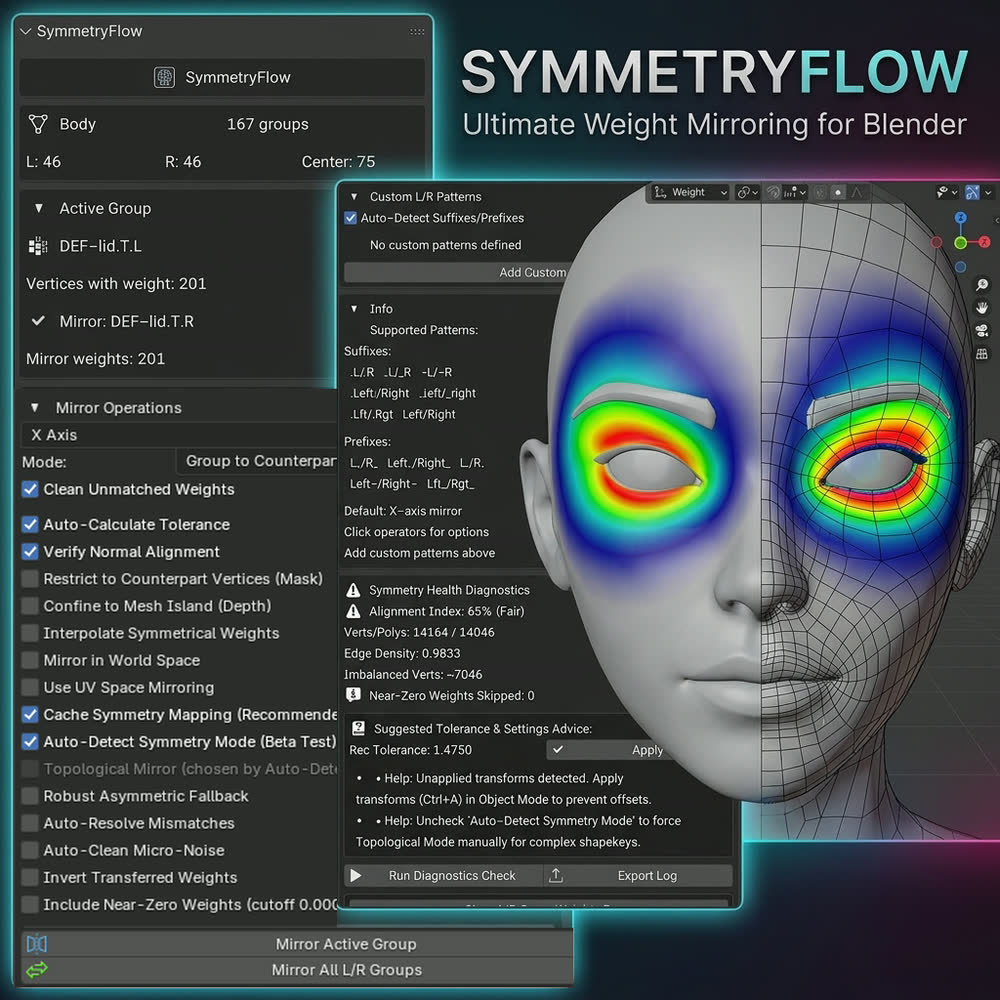

SymmetryFlow mirrors and transfers vertex-group weights across a character — then tells you, group by group, whether the two sides actually match. When they don’t, one button repairs them.
Blender’s mirror stops at the first vertex that isn’t an exact twin.
It is coordinate-based and all-or-nothing. On a production character that means the eyelids, lips, ears, teeth, brows and lashes — every part you actually need to get right.
This is not a bug in any Blender version. It has always worked this way. It was built for symmetrical geometry, and a character mesh moves away from being symmetrical as it gets sculpted, edited and assembled.
Two matching engines, chosen automatically.
Auto-Detect tests each group and picks the right one. Above both sits a maximum-matching pass that finds the true set of vertex partners instead of leaving stragglers mislabelled as unpairable.
Topological
Walks the mesh’s own edge connectivity, so it stays correct on posed meshes and shape keys — where the two sides are in completely different places in space and a coordinate mirror cannot pair them at all.
Spatial KD-tree
Queries mirrored positions in O(log N), for the meshes topology cannot handle: disconnected islands, asymmetric edge flow, parts-assembled and shell-split geometry.
A verification layer
The L/R Balance panel reports every pair as Balanced, Mismatched or Distorted. The verdict you read is produced by the same function Quick Fix acts on — report and repair cannot contradict each other.
Most tools mirror. This one tells you whether the mirror landed.
If a region genuinely cannot be mirrored — because one side has no matching vertex at all — it says so, by name, instead of quietly doing something wrong.
Every pair it calls Mismatched carries a Quick Fix button that repairs exactly what the readout is complaining about, and leaves Balanced pairs alone. The verdict and the repair come from the same function, so the panel cannot report a problem the button does not understand.
Rebuild every pair in one press.
Mirror All L/R Groups pairs every group by name, creates the counterparts that are missing, mirrors each in the auto-detected direction, then runs a self-heal pass against the same metric the panel reports.
Four of the options, and what each one changes.
Each clip mirrors the same group twice — once with the box unticked, once with it ticked — so what you are looking at is the difference the option makes. All of it recorded against a live Blender session with the pointer pressing the actual buttons; nothing scripted the result into place.
It writes only where it can prove a counterpart.
Restrict to Counterpart Vertices masks the mirror to the source’s weighted vertices and their true counterparts, and refuses to write anywhere else.
On a foot it has almost nothing to refuse — 852 vertices unticked, 851 ticked — so the transfer completes and you see what the option leaves behind rather than what it withholds. It earns its keep where a spatial match would otherwise grab a vertex on the surface behind: a lash in front of an eyelid, an upper lip against a lower one.
The mask stays armed afterwards — 1,702 vertices left selected, exactly the ones the mirror was allowed to touch, ready to paint.
It stops weight leaking onto the surface behind.
Where two surfaces sit close together — an upper lip resting on a lower one, an eyelid against its lash — a mirror can hand weight to the wrong one simply because it is the nearest point. Verify Normal Alignment checks which way each surface faces and refuses to write onto one facing the opposite way from the source. Strong weights get more leeway, so a noisy surface never costs you a real one.
You normally can’t see this happen: the wrong weight lands on a surface hidden behind another, anywhere two surfaces sit face to face — closed lips, an eyelid against its lash, the inside of the mouth. In this gif, the jaw is nudged until the lower lip pokes through the upper, bringing the hidden surface into view. On the lip corner of the same character it cuts wrong-facing weights from 8 of 92 to 2. It does nothing while Robust Asymmetric Fallback is on, because that option promises never to drop a weight.
It works on a rig that is out of rest pose.
Take the armature out of rest pose and the two sides are no longer at mirrored coordinates — there is nothing for a spatial mirror to pair. SymmetryFlow reads the weights from the unposed mesh, so the mirror still lands.
Some groups have no counterpart.
A centre-line group — a head, a spine, an eyelash strip — spans both sides at once, so there is no Arm.L to take from. The fix is to mirror the group onto itself.
Perfect Single Mirror does that in one press, in whichever direction you choose, and reports the same way every other operation does.
The tools around the mirror.
Mirroring is one button. Most of a rigging afternoon is the work either side of it — finding which pair is wrong, creating the group that does not exist yet, clearing a side to start again. These sit in the same sidebar.
Select Mismatched Vertices selects every vertex in a pair that disagrees with its counterpart, so you can see the damage rather than read a number. Select Unpairable Vertices selects the ones with no unique partner at all — near-coincident clusters and one-sided detail, which is the structural reason a count gap exists.
Between them they answer the two different questions a gap can raise: is this wrong, or is this simply not mirrorable.
Select Mirror Group switches the active group to its counterpart, which is how you compare two sides when Blender will only draw one at a time. Create Missing Groups scans the rig and makes every counterpart that does not exist yet.
Create Missing is the one that turns a half-rigged character into something Mirror All can work on.
Clear Active Group Weights empties one group. Delete All L Groups and its Right counterpart remove one whole side.
Blunt by design, and the fastest way to test that a mirror really does rebuild what you think it does — which is exactly how the batch clip further up was made.
A geometric symmetry analysis of the mesh rather than of one group: what is symmetrical, what is not, and a health readout for the rig as a whole. It also raises a Normal Inversion alert when the mesh has flipped normals, which is worth knowing before you blame the mirror.
Run it once on a character you have been handed, before you mirror anything.
Auto-Adjust Tolerance calculates and applies the right matching tolerance for the active group. Optimize All Tolerances walks every group, runs the local diagnostic on each, and settles on one figure that suits the whole character.
For when a pair reads Mismatched and the cause is the search radius rather than the geometry.
Snaps the object’s origin to the centre of its bounding box.
A coordinate mirror is only as good as the plane it reflects across. If the origin has drifted, this puts it back, and Mirror in World Space handles the cases where it cannot be moved.
X, Y and Z. Left to right is the common case, but front to back and top to bottom are both supported, on the topological engine as well as the spatial one.
For props, machinery and anything whose symmetry does not run the way a character’s does.
Writes the add-on’s diagnostic log stream out as a text file.
If something goes wrong on a mesh nobody else has, this is what turns a support conversation into a fixable report.
Group to Counterpart mirrors a group onto its opposite number. Symmetrize Single Group mirrors a centre-line group onto itself, for a head, a spine or an eyelash strip that spans both sides at once.
The second is the case with no counterpart to copy from, shown further up.
Every other option, and when you would reach for it.
These have no clip, and that is deliberate. An option demo is only worth watching when the difference is visible, and for most of these it is not — the work happens on hidden surfaces, in a tolerance, or across a batch. Where a figure is quoted below it was measured on a test character, not estimated.
Scales the match radius to the mesh’s own edge length instead of a fixed number, so the same setting means the same thing on a low-poly body and a dense face.
Leave it on unless you are chasing a specific failure by hand. Turning it off reveals Precision Tolerance, which is then yours to set and yours to get wrong.
Walks the mesh’s own edge connectivity rather than matching positions in space. The engine behind the posed-rig clip further up.
For posed meshes and shape keys, where the two sides are nowhere near mirrored coordinates. It needs the base topology to be genuinely symmetrical; where it is not, the spatial engine is the one that works.
Tests each group and picks the topological or the spatial engine for it, instead of you choosing once for the whole character.
On by default, and the reason the Topological Mirror toggle is greyed out until you untick it. Untick only when you want to force one engine and watch what it does.
Finds the partner group from the active group’s name, covering .L/.R, _L/_R, -L/-R, Left/Right, Lft/Rgt and the matching prefixes.
Untick it to reveal Custom Match Pattern, for a naming convention the built-in table does not cover. A custom pattern is a plain text swap and takes precedence, so set it to your actual convention or leave this ticked.
Transforms coordinates and normals into world space before reflecting them.
For objects that are not sitting at a clean origin — scaled, rotated, or moved off centre. On an object with an identity transform it changes nothing, which is why it has no clip: the test characters are all square to the world.
Matches vertices by their UV layout instead of their position in 3D, and derives its tolerance from UV edge length.
For halves that share a mirrored unwrap but do not line up in space. It is the wrong tool for a limb — measured on three characters it wrote fewer weights than the 3D matcher every time — and it does not bleed onto UV-less or seam vertices.
If the first pass leaves mismatches, it runs again with a widened adaptive tolerance rather than handing you the problem.
Useful on meshes where the two sides are close but not exact. It only does anything when the first attempt falls short, which is why it shows no difference on a clean character.
Builds one shared symmetry map per Mirror All run and applies it to every group in the batch.
Leave it on. Off is not a speed-versus-accuracy trade: on a 14,164-vertex, 167-group rig whose weights were already symmetric, on took 1.8 seconds and changed nothing, while off took 119 seconds, rewrote 11 groups and lost 74 weighted vertices outright. It has no effect on a single-group mirror.
Strips very small stray weights before the mirror runs.
For meshes carrying leftover dust from earlier edits. Do not pair it with Invert Transferred Weights: cleaning happens first, and a weight of 0.003 is meaningful once inverted, becoming roughly 0.997 on the target. The panel warns you when both are on.
Lowers the analysis cutoff from the Minimum Weight Threshold to a fixed 0.000001, so barely-weighted vertices still reach the matcher and the diagnostics.
Turn it on when the balance panel insists a pair is fine and you can see it is not. While it is on the Minimum Weight Threshold is ignored entirely, and the panel greys the field to say so.
What it cannot do.
We would rather you know this before buying than after.
It cannot make an asymmetric mesh symmetrical.
Where one side has no matching vertex, no tool can place a weight exactly. SymmetryFlow names those groups instead of guessing. Robust Asymmetric Fallback closes most of the rest: on the add-on’s own asymmetric fixture it takes the mirrored side from 56% of the source’s weighted vertices to 99%. The last seven vertices of 678 it does not reach.
Vertex counts may differ on faces.
Character faces are often not vertex-aligned across the mirror plane, so a rebuilt side can hold the same weights on a few more vertices. The weights are right; the tally differs.
Hair, lashes and brows take minutes.
Thousands of small overlapping pieces, and the matching work is genuinely large. Blender will look frozen — it is working. SymmetryFlow warns you before it starts, so you can save first or cancel.
The first of those three is the one with a tool against it. It writes the vertices a strict counterpart check refuses — part of the gap, never all of it. It sits with the limits rather than the features because the useful thing about it is not that it works, but that it does not finish the job.
Two downloads. Take one.
Same add-on, same features. They differ only in packaging, because Blender changed its add-on system in 4.2. Don’t unzip either — Blender installs from the zip.
Those two releases contain a bug in Blender itself — any add-on that highlights vertices then leaves Weight Paint mode closes Blender instantly, losing unsaved work. We reproduced it with SymmetryFlow completely uninstalled. Blender fixed it in 5.1.
Stop guessing whether the mirror worked.
Source included, with a full manual, a known-issues document written plainly and with measurements, and the complete changelog.
